In-Ice Logos & Rink Branding: A Buyer's & Installation Guide
In-ice logos run about $3 to $5 per square foot at published rink-supplier rates, which puts a 20-foot center-ice logo around $950 to $1,600 plus a one-time setup fee. Modern printed mesh versions are reusable across seasons, install without any on-ice painting, and need to be ordered three to four weeks before your ice goes in. Those three numbers answer most of what rink managers ask, yet almost every vendor in this category hides them behind a quote form.
This guide covers the rest: how logos actually live under the ice, mesh versus fabric versus paint, sizing and placement rules, the full installation sequence, and the order-by calendar for an August or September ice-in. There is also a dasher board section at the end, because the rinks that brand the ice almost always brand the boards in the same order cycle.
How In-Ice Logos Work
An in-ice logo is not on the ice, it is inside it. Rink ice is built in thin flooded layers over several days: foundation layers freeze against the refrigerated floor, a white base goes on for brightness and contrast, then lines, markings, and logos are placed and sealed under the remaining floods. The finished sheet on a professional rink is typically 1 to 1.5 inches thick, as the AHL's Wilkes-Barre/Scranton Penguins describe in their ice-making explainer, and the graphics sit near the bottom of that stack.
That placement is why a properly installed logo is not a skating hazard. Skaters never touch the graphic, only the ice above it, and published supplier guidance keeps a full protective depth of ice over any paint, lines, or logos. It is also why material choice matters: whatever goes under the ice has to freeze into the sheet without disturbing it.
Printed mesh solves that problem mechanically. Products like DuraMesh™ Ice Logos use a vinyl mesh weave that lets flood water pass straight through the graphic and freeze naturally, so the logo integrates into the sheet instead of creating a thermal barrier between layers. Painted logos achieve the same integration with pigment instead of material, at the cost of hours of stencil-and-brush labor on the ice.
Mesh, Fabric, or Paint: Choosing a Logo Type
Printed mesh is the default choice for most rinks today, and the comparison below shows why. Paint and stencils still make sense for single-color simple marks and for rinks with skilled ice crews, while premium textile fabric earns its price on photographic detail for showcase installations.
| Factor | Printed vinyl mesh | Textile fabric | Paint + stencil |
|---|---|---|---|
| Image quality | Full-color, high resolution | Highest detail, photo grade | Limited by stencil and hand work |
| On-ice labor | Minutes to place, no painting | Minutes to place | Hours of pouncing and painting |
| Reusable | Yes, multiple seasons | Yes, multiple seasons | No, repainted every ice-in |
| Water behavior | Freezes through the mesh | Depends on the weave | N/A, pigment in the ice |
| Typical buyer | Community rinks, schools, sponsors | Pro and showcase rinks | Traditional ice crews |
The reuse column is where the budget math lives. A painted logo is a recurring labor cost every single season, while a mesh logo is produced once and comes out of storage each fall. Over a three-season sponsorship agreement, the mesh logo's cost per season drops to a third of its sticker price, which is the argument that usually wins the budget meeting.
Sizing and Placement on the Rink
Rink dimensions set your sizing ceiling. A standard North American rink measures 200 feet by 85 feet with a 30-foot-diameter center faceoff circle, per the standard rink specifications, and the center circle is the practical upper bound for a center-ice logo. Worked against the published $3 to $5 per square foot rate, a 12-foot logo covers about 113 square feet and runs $340 to $570, while a 20-foot logo covers about 314 square feet and runs $950 to $1,600.

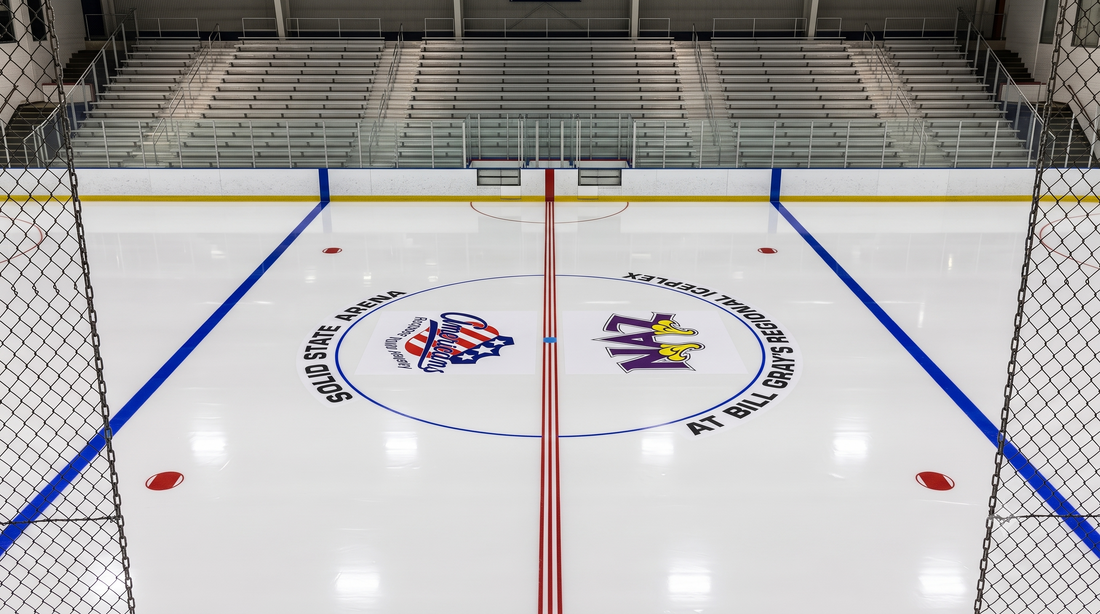

Placement follows a short list of proven positions. Center ice carries the team or facility mark, neutral-zone and corner positions carry sponsors, and the areas behind the goal lines face broadcast and livestream cameras directly. One rule matters before any sponsor agreement is signed: check your league's regulations on logo count and placement first, because sanctioning bodies restrict what can sit near officiating markings.
The placement shortlist: center ice for the home mark, neutral zone and corners for sponsors.
Large logos are produced as tiled panels rather than single sheets. Print rolls in this category top out around 10 feet wide, so a 20-foot center logo arrives as aligned panels that the installer joins on the ice. Panel seams disappear under the floods when aligned correctly, which is one more reason the dry-fit step in the install sequence below is not optional.
What In-Ice Logos Cost
Published rink-supplier pricing puts in-ice logos at $3 to $5 per square foot plus a one-time setup fee, and custom quotes move within that band based on five drivers. Size is the biggest lever, followed by color complexity, material tier (mesh versus premium fabric), tiling for oversized marks, and freight, since logos ship rolled on tubes rather than folded.
| Logo | Area | At published rates |
|---|---|---|
| 8 ft sponsor mark (corner) | ~50 sq ft | $150 – $250 |
| 12 ft logo (blue line / zone) | ~113 sq ft | $340 – $570 |
| 20 ft center-ice logo | ~314 sq ft | $950 – $1,600 |
| Full center-circle graphic, 30 ft | ~707 sq ft | $2,100 – $3,500 |
Budget-approval numbers at published per-square-foot rates.
Reusability changes what those numbers mean. Because mesh logos come out at spring melt and reinstall the next fall, a facility amortizes the production cost across every season the artwork stays current, and sponsors can be billed annually against a one-time asset. Rush production exists in this industry but costs extra, which makes the ordering calendar below the cheapest cost-control tool available.
Custom-quoted products like DuraMesh™ are priced to the exact artwork, dimensions, and panel count, so treat the table above as budget-approval numbers rather than final pricing.
Installing an In-Ice Logo Step by Step
The install sequence is the same across the industry, and it happens during the ice build, not after it. A mesh logo placement itself takes only minutes once the panels are aligned; the real schedule cost is the freeze cycles between water coats, so the logo work gets built into the flood plan.
- Cure the print. Unroll the logo and let it breathe for at least 24 hours before install day so inks are fully cured.
- Build the foundation. Flood and freeze the first layers and the white base as usual.
- Prep the placement area. Lightly shave the spot where the logo will sit so it lies dead flat.
- Dry-fit and align. Position the logo, and align all panels of a tiled graphic before any water touches them.
- Mist and freeze. Apply a light spray of water extending about 12 inches beyond every edge of the graphic, then let it freeze to lock the logo in place.
- Roller-coat and freeze again. Work a water-soaked clean roller over the full graphic to the same 12-inch margin, and let that layer freeze.
- Flood to depth. Continue normal flood layers until the sheet reaches its full thickness over the graphic.
- Inspect and re-inspect. Check the ice over the logo after the first skate and after early resurfacings, the same way the crew checks lines and creases.
Two failure modes account for most problems: skipping the cure time, which risks ink transfer, and wetting a misaligned tiled panel, which is why step 4 exists. Both are prevented by calendar, not skill, which brings us to ordering.
The Order-By Calendar for a Fall Ice-In
Work backward from the day the ice goes in. Typical published production times in this category run 5 to 7 business days after the artwork proof is approved, and approval itself usually takes a round or two of revisions. Add freight time for a rolled freight shipment plus a buffer week, and the math says an ice-in around Labor Day needs the order started in early August.
Start in early August and the Labor Day ice-in takes care of itself.
A concrete version of that calendar looks like this. Week of August 3: submit vector artwork and dimensions, and start the proof cycle. Week of August 10: approve the proof, and production begins. Week of August 17: production wraps and the logo ships. Week of August 24: logo on site, cured, and staged. September 1: placed between flood layers during the build. Miss the front of that calendar and rush fees or a painted-logo fallback become the only options, and the next clean window is not until the following summer.
Dasher Board Graphics: Finishing the Rink
Rinks that brand the ice almost always brand the boards in the same cycle, because the two surfaces share sponsors, sightlines, and the ordering calendar. Board graphics like DuraBoard™ dasher board signs wrap the rink perimeter with full-color sponsor and team panels engineered for puck impacts, temperature swings, and a full season of play.
Installation is a squeegee job rather than an ice job, and three practices separate clean installs from bubbled ones. Clean every board of residue and moisture first, level each panel off the top edge of the boards rather than the ice line, and squeegee from the middle outward so air chases to the edges instead of trapping under the print. Bundling boards and ice logos into one order also puts both on the same proof-and-production timeline, which is one less calendar to manage in August.
For the rest of the arena's branding surfaces, from the scoreboard down, our scoreboard graphics guide covers the same buyer-first planning for the board above the ice.
Frequently Asked Questions
1. How much do in-ice logos cost?
2. How many seasons can a mesh ice logo be reused?
3. Are in-ice logos a tripping hazard for skaters?
4. When should we order ice logos for a fall ice-in?
5. Can in-ice logos be used on outdoor or seasonal rinks?
6. Are printed mesh logos better than painted logos?
