The Four Mounting Options

Mounting system Best for Trade-off
1" Lip Top & Bottom Budget projects Most economical option
Z-Channel Top / 1" Lip Bottom Finished look + security Best looking and most secure (Z-channel sold per lineal foot)
Aluminum Wall Channel Top & Bottom Facilities that expect wear Best for the ability to replace individual pads (channel sold in 6-foot length sets)
Z-Channel Top & Bottom N/A Most expensive and not as secure generally the option to skip
Option 1: 1" Lip Top & Bottom (Most Economical)

Each pad is built with a one-inch lip at top and bottom that fastens directly to the wall. It's the simplest, lowest-cost way to put padding up, and the right call when budget drives the project.

Option 2: Z-Channel Top / 1" Lip Bottom (Best Looking & Most Secure)

A Z-channel rail (sold per lineal foot) carries the top of the pad while a one-inch lip secures the bottom. This hybrid is the manufacturer's pick for appearance and security: the top edge locks into the channel for a clean, hardware-concealed line across the wall.

Option 3: Aluminum Wall Channel Top & Bottom (Easiest Pad Replacement)

Aluminum wall channel (sold in 6-foot length sets) carries both edges of the pad. Its advantage is serviceability: individual pads can be removed and replaced without disturbing the neighbors, making it the best choice for high-abuse walls where a single pad may need swapping mid-season.

Option 4: Z-Channel Top & Bottom (Generally Skip)

Running Z-channel on both edges is the most expensive configuration and, counterintuitively, not as secure as the hybrid in Option 2. It exists, but for most facilities one of the other three options is the better spend.

How to Choose

  • Tightest budget

    1" Lip Top & Bottom.

  • Front-of-house walls where looks and security matter

    Z-Channel Top / 1" Lip Bottom.

  • High-wear walls where pads get replaced

    Aluminum Wall Channel.

  • Unsure?

    Tell us the wall and the sport when you request a quote and we'll spec the mounting with the pads.

Frequently Asked Questions

How do gym wall pads attach to the wall?

Four standard systems: a 1-inch lip at top and bottom (most economical), Z-channel top with a 1-inch lip bottom (best looking and most secure), aluminum wall channel top and bottom (easiest individual-pad replacement), or Z-channel top and bottom (most expensive, and not as secure as the hybrid).

Which wall pad mounting is cheapest?

The 1" lip top/bottom configuration: the pad's built-in lips fasten straight to the wall with no rail hardware.

Which mounting makes pads easiest to replace?

Aluminum wall channel top and bottom (sold in 6-foot sets). Individual pads lift out and swap without disturbing the rest of the row.

Which mounting looks best?

Z-channel top with a 1" lip bottom: the top edge locks into a rail for a clean line, and it's also the most secure of the four options.

Do these options apply to backstop and outfield pads too?

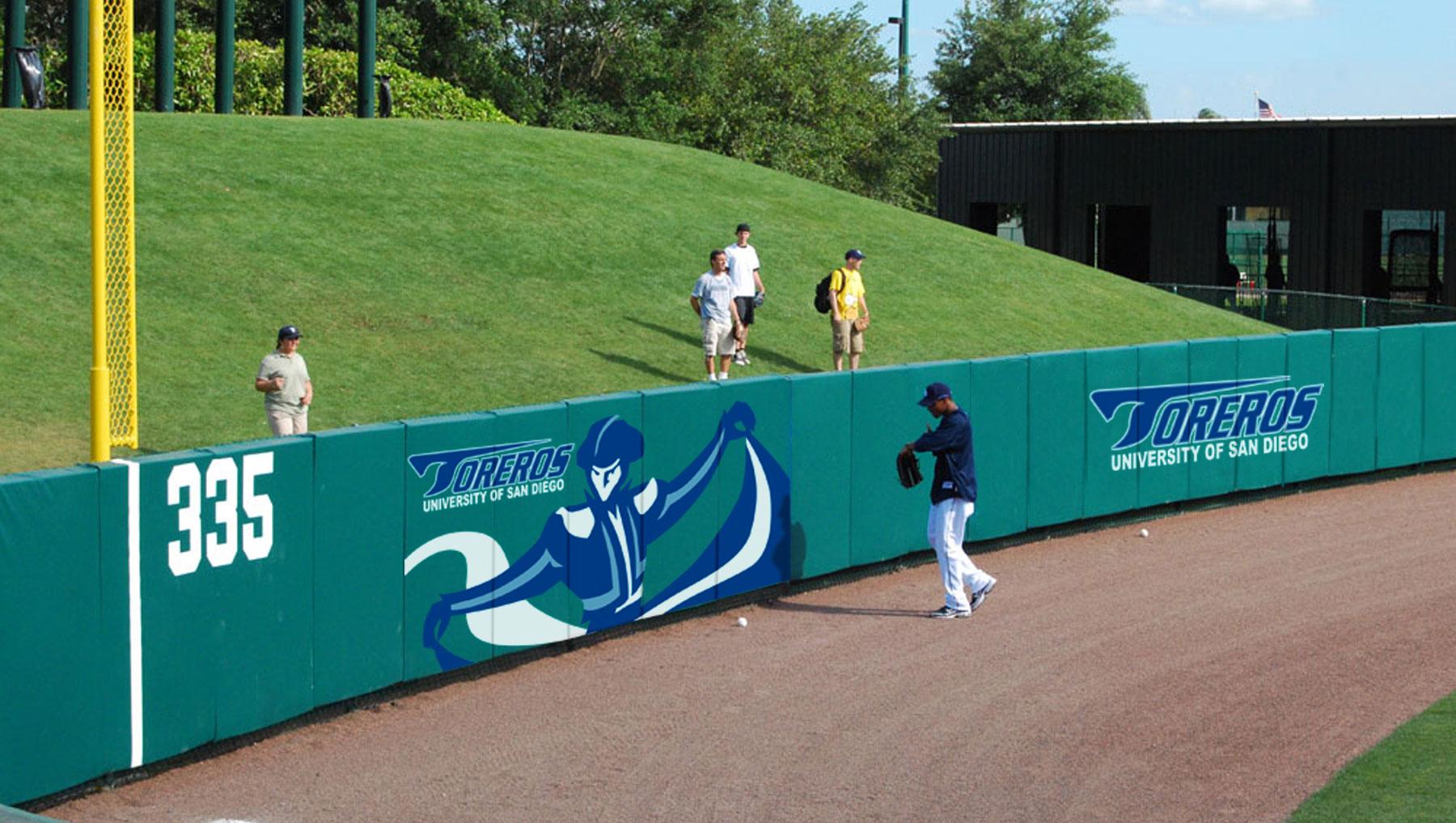

Yes. The same mounting systems carry BrandPad backstop, gym, and outfield wall pads; the right choice depends on the wall and how often pads take abuse.

Can the pads be printed with our branding?

Yes. BrandPad pads are custom-printed (that's the point). Mounting choice doesn't limit the graphics.

Can BIGSIGNS spec the mounting for us?

Yes. Tell us the wall surface and sport on the quote form or call 800.790.7611 and we'll recommend the mounting system with your pad order.
