Dura Trac Installation Guide

Screws 3 per 8’ sectionSelf-tapping, into the surface
Top frame “C” opening faces downLip flush, open off the fascia edge
Bottom frame “C” opening faces upLip flush, open off the fascia edge
Banner Slide both rails togetherTop and bottom at the same time

The Dura-Trac™ Frame

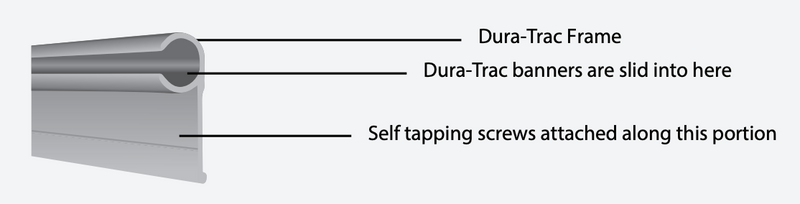

Dura-Trac frame cross-section: banner slides into the round channel, self-tapping screws along the flat strip

The Dura-Trac™ frame: banners slide into the channel; self-tapping screws go along the flat portion.

4 steps

Step-by-Step Installation

Step 1 of 4

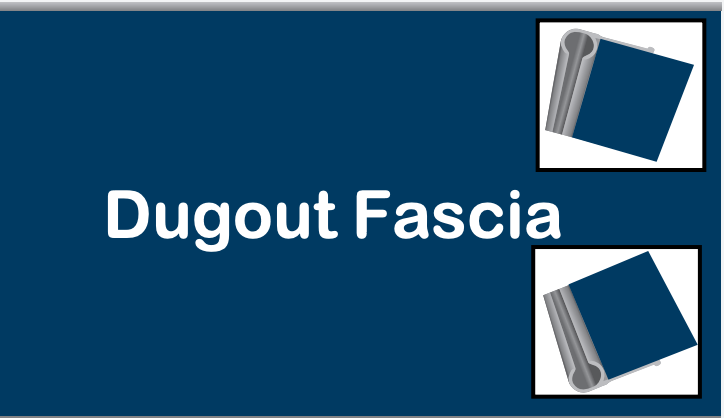

Position the top frame

Top Dura-Trac™ Frame lip should be flush against the bottom with the “c” shape open hanging off the fascia edge, the opening should be facing down.

Step 2 of 4

Position the bottom frame

Bottom Dura-Trac™ Frame lip should be flush against the top of the dugout with the “c” shape open off the fascia edge, the opening should be facing up.

Step 3 of 4

Fasten the frame

Attach the Dura-Trac™ Frame to the surface using 3 self tapping screws per each 8’ section.

Step 4 of 4

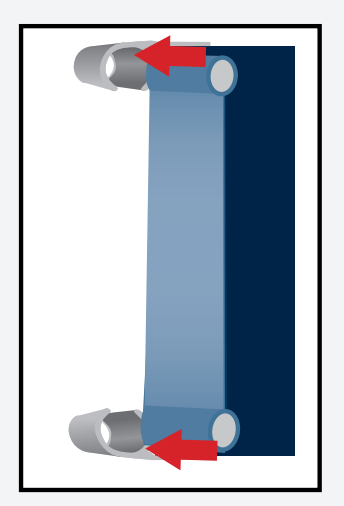

Slide the banner in

Once both the top and the bottom frame are installed, the next step is to slide the banner into the unit. You will want to slide both the top and bottom Dura-Trac™ rails at the same time, to make sure that both rails fit correctly in the frame openings.
